Antenna 3D Measurement System for Mobile Phone

Specifications

Antenna 3D Measurement System & corresponding anechoic chamber can be used for Mobile Phone Antenna Test.

The anechoic chamber built according to this proposal, can provide electromagnetic environment and testing conditions for measurement of tested antenna's radiation performance. This chamber can effective eliminate outside electromagnetic interference and other reflection interference. It can simulate free space environment required by antenna measurement, in order to obtain reliable & standardized test data, ensuring the accuracy of antenna measurement.

Antenna 3D Measurement System for Mobile Phone, includes:
1. VNA
2. Anechoic Chamber
3. Two-dimensional Positioner

4. Test Antenna
5. Reference Antenna
6. PC & Positioner's Controller

Antenna 3D Measurement System's functions:
1. Antenna Gain measurement
2. Antenna E, H directional diagram measurement
3. Antenna 3D directional diagram and efficiency measurement
4. Mobile phone Active measurement environment and conditions.

Typical project: HK Leide Co., anechoic chamber for mobile phone test.

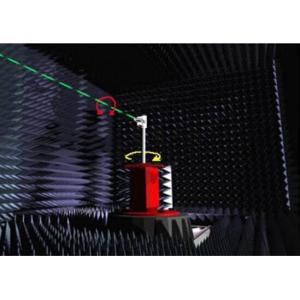

Antenna 3D Measurement System for Mobile Phone Images
